Solutions
Angled Male N High Speed Backplane Connector Assembly
Product Specifications:
Withstand voltage: 500V AC
Insulation resistance: ≤1000MΩ (500V DC)
Rated current: 1.5A
Transmission rate: 25.6Gbps
Main functions and uses:
The main function is high-speed data signal transmission between modules in the electronic system;
It is mainly used for data storage and transmission of communication base station cabinets, switches, data centers, etc., as well as a new generation of avionics communication systems.

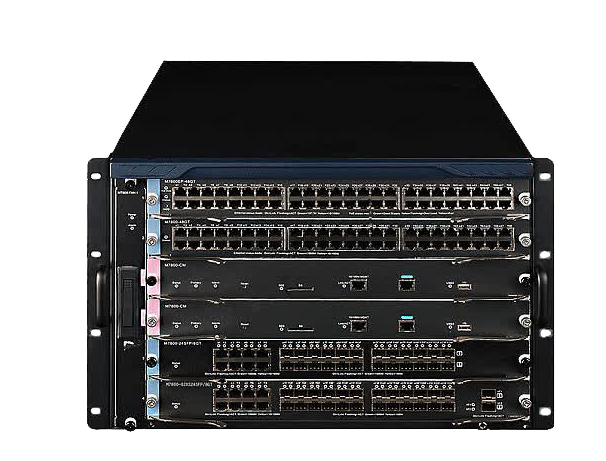

The picture is the picture of the application terminal product (source: Elements), for reference only.
Bent Female 4 Pair High Speed Backplane Connector Assembly
Product Specifications:
Withstand voltage: 500V AC
Insulation resistance: ≤1000MΩ (500V DC)
Rated current: 1.5A
Transmission rate: 112Gbps
Main functions and uses:
The main function is high-speed data signal transmission between modules in the electronic system;
It is mainly used for data storage and transmission of communication base station cabinets, switches, data centers, etc., as well as a new generation of avionics communication systems.

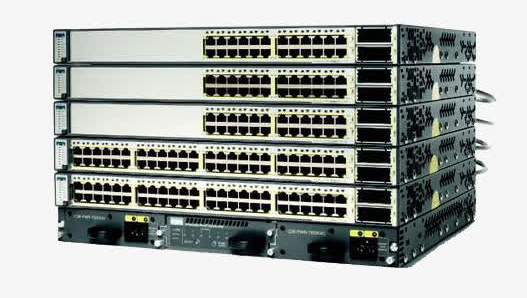

The picture is the picture of the application terminal product (source: Elements), for reference only.
Bent Female High Speed Backplane Connector Assemblies
Product Specifications:
Withstand voltage: 500V AC
Insulation resistance: ≤1000MΩ (500V DC)
Rated current: 1.5A
Transmission rate: 56Gbps
Main functions and uses:
The main function is high-speed data signal transmission between modules in the electronic system;
It is mainly used for data storage and transmission of communication base station cabinets, switches, data centers, etc., as well as a new generation of avionics communication systems.

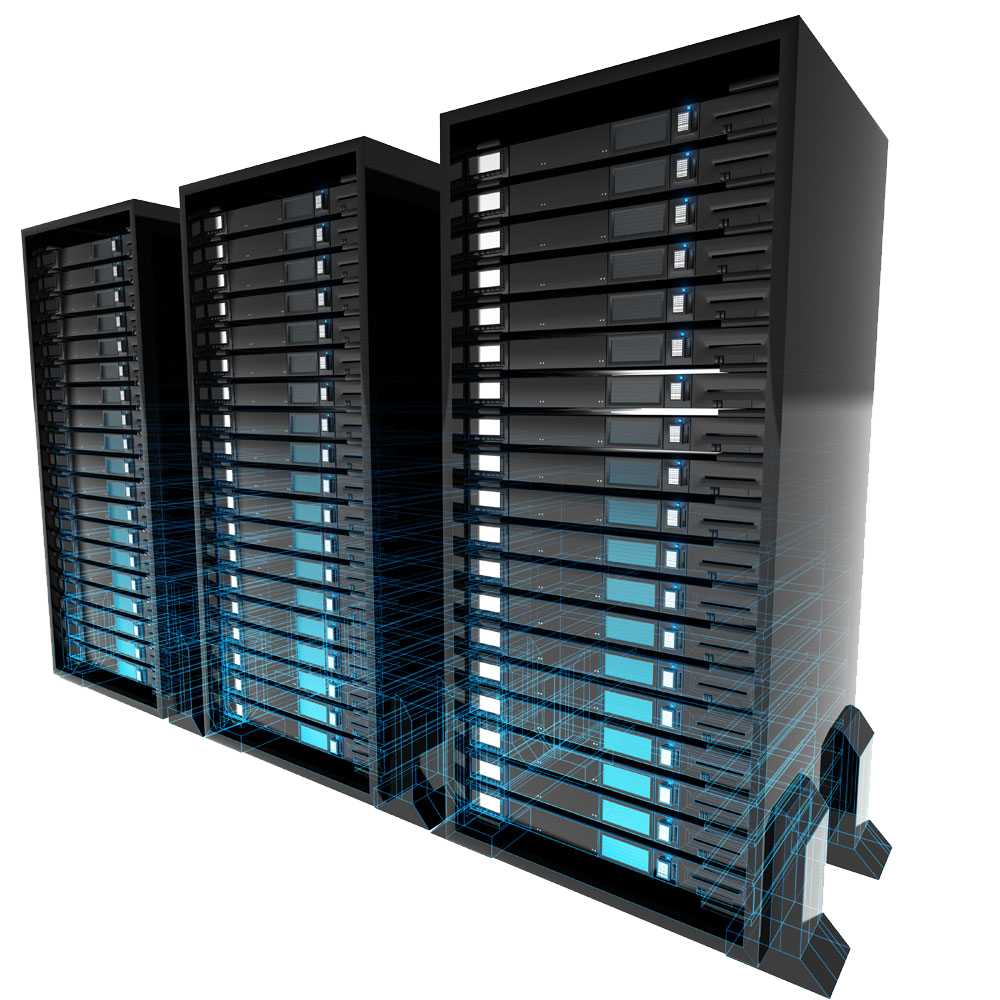

The picture is the picture of the application terminal product (source: Elements), for reference only.
Straight male high-speed backplane connector assembly
Product Specifications:
Withstand voltage: 500V AC
Insulation resistance: ≤1000MΩ (500V DC)
Rated current: 1.5A
Transmission rate: 25.6Gbps
Main functions and uses:
The main function is high-speed data signal transmission between modules in the electronic system;
It is mainly used for data storage and transmission of communication base station cabinets, switches, data centers, etc., as well as a new generation of avionics communication systems.

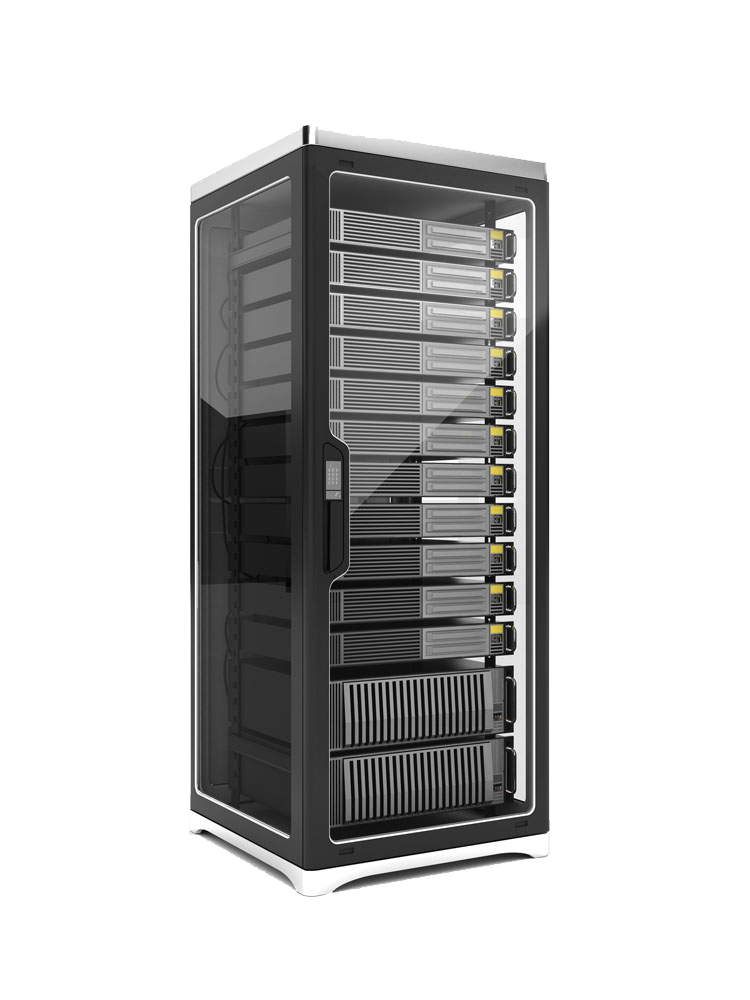

The picture is the picture of the application terminal product (source: Elements), for reference only.
Straight male 2PIN high-speed backplane connector assembly
Product Specifications:
Withstand voltage: 500V AC
Insulation resistance: ≤1000MΩ (500V DC)
Rated current: 1.5A
Transmission rate: 112Gbps
Main functions and uses:
The main function is high-speed data signal transmission between modules in the electronic system;
It is mainly used for data storage and transmission of communication base station cabinets, switches, data centers, etc., as well as a new generation of avionics communication systems.

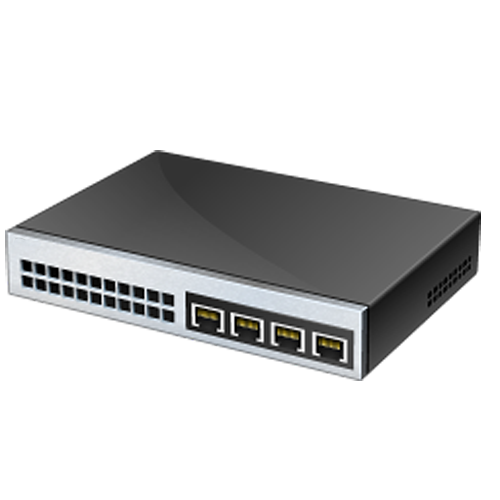

The picture is the picture of the application terminal product (source: Elements), for reference only.
